International Container Dimensions

Dry Cargo Container

20' Steel Dry Cargo Container
Exterior 20sd
Length Width Height
20'0" 8'0" 8'6"
6.058 m 2.438 m 2.591 m
Interior
Length Width Height
19'4 13/16" 7'8 19/32" 7'9 57/64"
5.898 m 2.352 m 2.385 m
Weight Door Opening
MGW TARE NET Width Height
52,910 lb 5,140 lb 47,770 lb 7'-8 1/8" 7'-5 3/4"
67,200 lb 5,290 lb 61,910 lb 2.343 m 2.280 m
24,000 kg 2,330 kg 21,670 kg CU.M CU.FT
30,480 kg 2,400 kg 28,080 kg 33.1 1,169
Purpose
1.Used for all kinds of general cargo.
2.Captioned units(MGW 30,480 KG) can be coordinated from EMCU 3204073 and EISU 3568118.

40' Steel Dry Cargo Container
Exterior 40sd
Length Width Height
40'0" 8'0" 8'6"
12.192 m 2.438 m 2.591 m
Interior
Length Width Height
39'5 45/64" 7'8 19/32" 7'9 57/64"
12.032 m 2.352 m 2.385 m
Weight Door Opening
MGW TARE NET Width Height
67,200 lb 8,820 lb 58,380 lb 7'-8 1/8" 7'-5 3/4"
2.343 m 2.280 m
30,480 kg 4,000 kg 26,480 kg CU.M CU.FT
67.5 2,385
Purpose
Used for all kinds of general cargo.

  40' Hi-Cube Steel Dry Cargo Container
Exterior 40sh
Length Width Height
40'0" 8'0" 9'6"
12.192 m 2.438 m 2.896 m
Interior
Length Width Height
39'5 45/64" 7'8 19/32" 8'9 15/16"
12.032 m 2.352 m 2.69 m
Weight Door Opening
MGW TARE NET Width Height
67,200 lb 9,260 lb 57,940 lb 7'-8 1/8" 8'-5 49/64"
2.343 m 2.585 m
30,480 kg 4,200 kg 26,280 kg CU.M CU.FT
76.2 2,690
Purpose
Used for all kinds of general cargo.

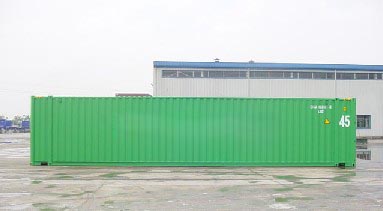

45' Hi-Cube Steel Dry Cargo Container
Exterior 45sh
Length Width Height
45'0" 8'0" 9'6"
13.716 m 2.438 m 2.896 m
Interior
Length Width Height
44'4" 7'6" 8'9 15/16"
13.556 m 2.352 m 2.698 m
Weight Door Opening
MGW TARE NET Width Height
67,200 lb 10,580 lb 56,620 lb 7'8 1/8" 8'5 3/4"
2.340 m 2.585 m
30,480 kg 4,800 kg 25,680 kg CU.M CU.FT
86.1 3,040
Purpose
Used for all kinds of general cargo.


Exterior 45sh
Length Width Height
45'0" 8'0" 9'6"
13.716 m 2.438 m 2.896 m
Interior
Length Width Height
44'6" 7'7" 8'7"
13.556 m 2.352 m 2.698 m
Weight Door Opening
MGW TARE NET Width Height
71,650 lb 10,360 lb 61,290 lb 7'8" 8'6"
3.340 m 2.585 m
30,500 kg 4,700 kg 27,800 kg CU.M CU.FT
86 3,040
Purpose
Used for all kinds of general cargo.



Refrigerated Container

20' M.G.S.S. Refrigerated Container
Exterior 20reefer
Length Width Height
20'0" 8'0" 8'6"
6.058 m 2.438 m 2.591 m
Interior
Length Width Height
18' 17/32" 7'6 15/32" 7'5 39/54"
5.5 m 2.298 m 2.276 m
Nominal Weight
Cubic Capacity MGW TARE
1006 cu.ft. 67,180 lb 6,700 lb
30,480 kg 3,040 kg
28.5 cu.m. CU.M CU.FT
28.8 1,016
Cooling capacity Air exchange rate Type Temp.
control precision
w(kcal)/C(F) CFM cu.m/hr
11,000(9,460)/1.7(35)
6,280(5,400)/-18(0)		 0-106 0-180 MHI
CPE14-2BAIIIEU		 +-0.25C
Purpose
Used for all kinds of general cargo.

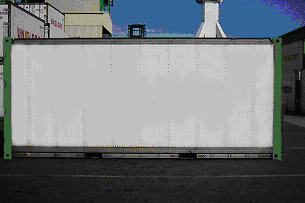

20' Aluminum Refrigerated Container
Exterior 20reefer
Length Width Height
20'0" 8'0" 8'6"
6.058 m 2.438 m 2.591 m
Interior
Length Width Height
17'- 9.15/16" 7'6" 7'3.63/64"
5.543 m 2.286 m 2.235 m
Nominal Weight
Cubic Capacity MGW TARE
978.46 cu.ft. 52,800 lb 6,314 lb
24,000 kg 2,870 kg
27.72 cu.m. CU.M CU.FT
27.72 978.46
Cooling capacity Air exchange rate Type Temp.
control precision
w(kcal)/C(F) CFM cu.m/hr
11,000(9,460)/1.7(35)
6,280(5,400)/-18(0)		 0-106 0-180 MHI
CPE14-2BAIIIEU		 +-0.25C

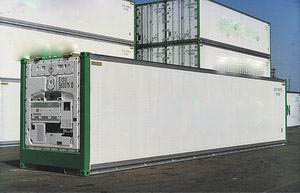

40' M.G.S.S. Hi-Cube Refrigerated Container
Exterior 40reefer
Length Width Height
40'0" 8'0" 9'6"
12.192 m 2.438 m 2.896 m
Interior
Length Width Height
37'11 55/64" 7'6 15/32" 8'4 5/32"
11.579 m 2.298 m 2.544 m
Nominal Weight
Cubic Capacity MGW TARE
2,390 cu.ft. 74,960 lb 9,150 lb
34,000 kg 4,150 kg
67.70 cu.m. CU.M CU.FT
67.7 2,390
Cooling capacity Air exchange rate Type Temp.
control precision
w(kcal)/C(F) CFM cu.m/hr
11,000(9,460)/1.7(35)
6,280(5,400)/-18(0)		 0-106 0-180 MHI
CPE16-2BAIIIEV		 +-0.25C




40' Hi-Cube Aluminum Refrigerated Container
Exterior 40rf0
Length Width Height
40'0" 8'0" 9'6"
12.192 m 2.438 m 2.896 m
Interior
Length Width Height
38'1 13/32" 7'6" 8'2 23/32"
11.618 m 2.286 m 2.507 m
Nominal Weight
Cubic Capacity MGW TARE
2351 cu.ft. 67,200 lb 8,436 lb
30,480 kg 3,830 kg
66.58 cu.m. CU.M CU.FT
66.6 2,351
Cooling capacity Air exchange rate Type Temp.
control precision
CFM cu.m/hr w(kcal)/C(F)
9,011(7,750)/1.7(35)
4,825(4,150)/-17.8(0)		 0-180 0-305 Paul Klinge
TNE-406		 +-0.25C
11,000(9,460)/1.7(35)
6,280(5,400)/-18(0)		 0-106 0-180 MHI
CPE14-2BAIIIA/ES		 +-0.25C



Special Container

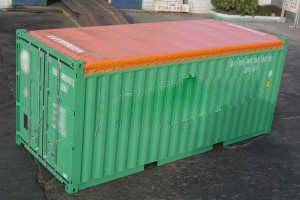

20' Full Height Open Top Container
Exterior 20fhop
Length Width Height
20'0" 8'0" 8'6"
6.058 m 2.438 m 2.591 m
Interior
Length Width Height
19'4 1/2" 7'8 1/2" 7'8 1/8"
5.898 m 2.352 m 2.342 m
Weight Door Opening
MGW TARE NET Width Height
44,800 lb 4,850 lb 39,950 lb 7'-7 47/64" 7'-5 1/8"
20,320 kg 2,200 kg 18,120 kg 2.330 m 2.263 m
CU.M CU.FT
32.5 1,148
Purpose
Suitable for sensitive cargos which require top loading, such as sheet glass,timber and machinery.

Exterior 20fhot2
Length Width Height
20'0" 8'0" 8'6"'
6.058 m 2.438 m 2.591 m
Interior
Length Width Height
19.35' 7.72' 7.7'
5.898 m 2.352 m 2.348 m
Weight
MGW TARE NET
67,200 lb 5,140 lb 62,060 lb
30,480 kg 2,330 kg 28,150 kg
Purpose
Captioned units can be coordinated from EISU 460001 to EISU 460300.



20 ' Flat Rack Container
Exterior 20fccn
Length Width Height
20'0" 8'0" 8'6"'
6.058 m 2.438 m 2.591 m
Interior
Length Width Height
18'6 7/16" 6'7 59/64" 6'9 39/64"
5.650 m 2.030 m 2.073 m
Weight
MGW TARE NET
66,140 lb 6,150 lb 59,990 lb
30,000 kg 2,790 kg 27,210 kg
Purpose
For the carriage of oversized, awkward and heavy cargos.

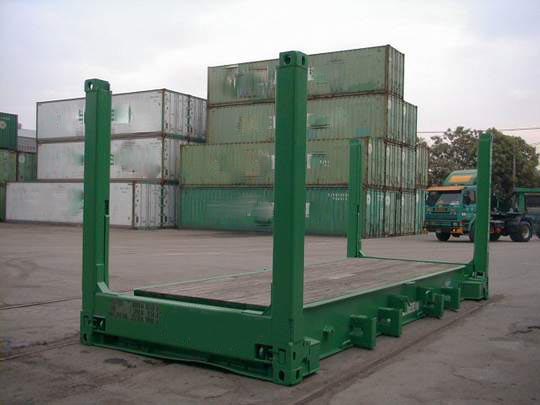

20' Flat Rack Container with Collapsible End
Exterior 20fccn
Length Width Height
20'0" 8'0" 8'6"'
6.058 m 2.438 m 2.591 m
Interior
Length Width Height
18'6 7/16" 6'7 59/64" 6'9 39/64"
5.650 m 2.030 m 2.073 m
Weight
MGW TARE NET
66,140 lb 6,150 lb 59,990 lb
30,000 kg 2,790 kg 27,210 kg
Purpose
For the carriage of oversized, awkward and heavy cargos.

Exterior 20fccn
Length Width Height
20'0" 8'0" 8'6"'
6.058 m 2.438 m 2.591 m
Interior
Length Width Height
18'5 62/64" 7'3 46/64" 7'3 59/64"
5.638 m 2.228 m 2.233 m
Weight
MGW TARE NET
74,950 lb 6,370 lb 68,580 lb
34,000 kg 2,890 kg 31,110 kg
Purpose
Captioned units can be coordinated from EISU 7500008 to EISU 7501998.

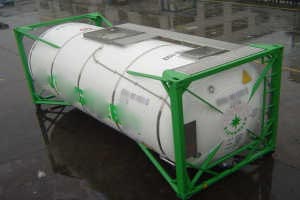

20' Fuel Tank Container
Exterior 40fhot1
Length Width Height
20'0" 8'0" 8'6"
6.058 m 2.438 m 2.591 m
Weight
MGW TARE NET
36,000 kg 3,385 kg 32,615 kg
Capacity Design Temp.
24,000 litres -20°C to 130°C
Purpose
Captioned units can be coordinated from EISU 8010010 to EISU 8010453,
and are need for power pack generators equipped on group vessels, not
for export or import purpose.

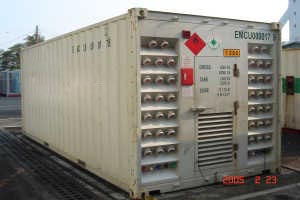

20' Power Pack Generator Container
Exterior 40fhot1
Length Width Height
20'0" 8'0" 8'6"
6.058 m 2.438 m 2.591 m
Interior
Length Width Height
19'4 13/16" 7'8 19/32" 7'9 57/64"
5.898 m 2.352 m 2.385 m
Weight
MGW TARE MACHINE
8,500 kg 2,400 kg 6,100 kg
Power Supply Socket
450 kw 40
Purpose
Captioned units can be coordinated from EMCU 0000013 to EMCU 0000409.

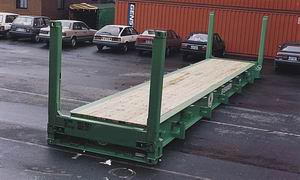

40' Flat Rack Container
Exterior 40fccn
Length Width Height
40'0" 8'0" 8'6"'
12.192 m 2.438 m 2.591 m
Interior
Length Width Height
38'7 15/16" 6'7 59/64" 6'4 1/2"
11.784 m 2.030 m 1.943 m
Weight
MGW TARE NET
99,210 lb 11,908 lb 87,302 lb
45,000 kg 5,400 kg 39,600 kg
Purpose
Suitable for sensitive cargos which require top loading, such as sheet glass, timber and machinery.

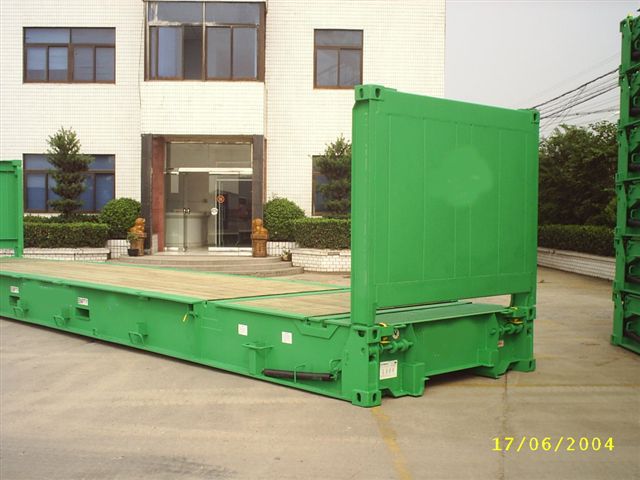

40' Flat Rack Container with Collapsible End
Exterior 40fccn
Length Width Height
40'0" 8'0" 8'6"'
12.192 m 2.438 m 2.591 m
Interior
Length Width Height
38'7 39/64" 7'3 46/64" 6'4 61/64"
11.776 m 2.228 m 1.955 m
Weight
MGW TARE NET
99,210 lb 10,140 lb 89,070 lb
45,000 kg 4,600 kg 40,400 kg
Purpose
Captioned units can be coordinated from EISU 7100001 to EISU 7101991.

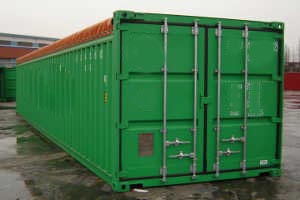

40' Full Height Open Top Container
Exterior 40fhop
Length Width Height
40'0" 8'0" 8'6"
12.192 m 2.438 m 2.591 m
Interior
Length Width Height
39'5" 7'8 1/2" 7'8 1/8"
12.034 m 2.352 m 2.33 m
Weight
MGW TARE NET
67,200 lb 9,040 lb 58,160 lb
30,480 kg 4,100 kg 26,380 kg
CU.M CU.FT
65.9 2,327
Purpose
For the carriage of oversized, awkward and heavy cargos.

Exterior 40fhot2
Length Width Height
40'0" 8'0" 8'6"
12.192 m 2.438 m 2.591 m
Interior
Length Width Height
39.48' 7.72' 7.7'
12.032 m 2.352 m 2.348 m
Weight
MGW TARE NET
67,200 lb 8,950 lb 58,250 lb
30,480 kg 4,060 kg 26,420 kg
Purpose
Captioned units can be coordinated from EISU 400001 to EISU 400300.

40' Hi-Cube Hanger Container
Exterior 40sh
Length Width Height
40'0" 8'0" 9'6"
12.19 m 2.44 m 2.90 m
Interior
Length Width Height
39'5 45/64" 7'8 19/32" 8'9 15/16"
12.03 m 2.35 m 2.69 m
Weight Door Opening
MGW TARE NET Width Height
67,200 lb 9,172 lb 58,028 lb 7'-8 1/8" 8'-5 49/64"
30,480 kg 4,200 kg 26,280 kg 2.343 m 2.585 m
Purpose
Used for all kinds of garment.


The Listed statues are for customers' easy reference only.Before picking up requested containers, please contact the assigned sales person in order to confirm required specification.
The specifications listed above are for indication purpose only. Please always refer to the container right door for actual specifications.
